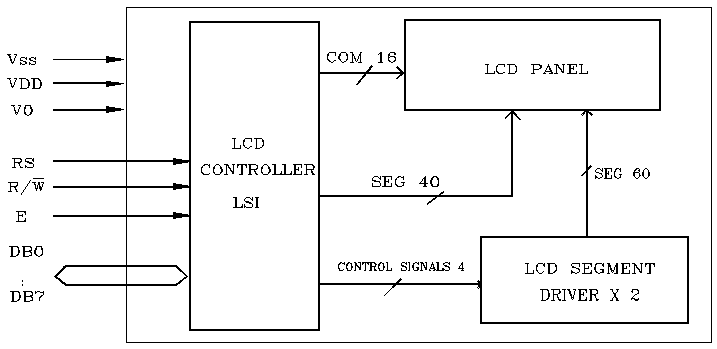

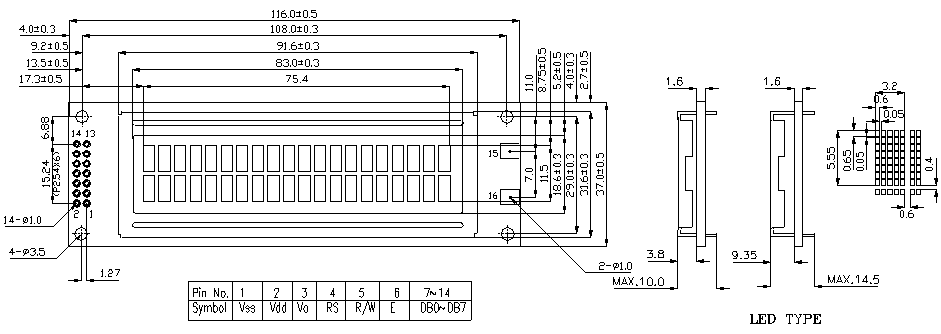

1 Outline dimensions2 Block diagram
3 Mechanical specification
| Item | Specifications | Unit | Remark |
| Dimensinal Outline | 116.0(W)กม37.0(H)กม10.0/14.5MAX.(T) | mm | *REFERENCE DIMENSIONAL OUTLINE |
| View Area | 83.0(W)กม18.6(H) | mm | |
| Effective V/Area | 75.4(W)กม11.5(H) | mm | |
| Character Font | 5กม8 Dots | -- | |
| Charcter Size | 3.20(W)กม5.55(H) | mm | |
| Dot Pitch | 0.65(W)กม0.70(H ) | mm | |
| Dot Size | 0.60(W)กม0.65(H) | mm |
4 ELECTRICAL CHARACTERISTICS (Ta=25oC)
| Item | Symbol | Test Condition |
Standard Value
|
Unit | ||
|
Min.
|
Typ.
|
Max.
|
||||
| Input High Voltage | VIH |
-
|
2.2
|
-
|
Vdd
|
V
|
| Input Low Voltage | VIL |
-
|
-0.3
|
-
|
0.6
|
V
|
| Output High Voltage | VOH |
IOH = 0.2mA
|
2.4
|
-
|
-
|
V
|
| Output Low Voltage | VOL |
IOL = 1.2mA
|
-
|
-
|
0.4
|
V
|
| Supply Current | IDD |
Vdd=5.0V
|
-
|
2.0
|
3.0
|
mA
|
| Operating Voltage for LCD | Vdd-Vo |
STN
|
-
|
5.0
|
-
|
V
|
|
TN
|
-
|
5.0
|
-
|
V
|
||
