1 ELECTRICAL CHARACTERISTICS (Ta=25oC)
|
ITEM |
SYMBOL |
CONDITION |
MIN |
TYPE |
MAX. |
UNIT |
| LOGIC CIRCUIT POWER SUPPLY VOLTAGE |
VDD-Vss |
- |
4.5 |
5.0 |
5.5 |
V |
|
INPUT VOLTAGE |
VIH |
-
|
2.4 |
- |
VDD |
V |
|
INPUT VOLTAGE |
VIL |
- |
Vss |
- |
0.4 |
V |
|
LOGIC CIRCUIT |
IDD |
VDD-Vss=5.0V |
1.0
|
-
|
-
|
MA |
|
RECOMMENDED |
VDD-V0 f
=0 q =0 |
Ta=25℃ |
3.0 |
- |
-
|
V |
|
FRAME FREQUNCY |
FFLM |
- |
- |
128 |
- |
HZ |
3-2. ELECTRO—OPTICAL CHARACTERISTICS( Ta=25oC)
TN type:
|
ITEM |
SYMBOL |
CONDITION |
MIN |
TYPE |
MAX |
UNIT |
|
VIEW ANGLE |
Δj |
q
=0°(Cr³
2) |
25 |
30 |
— |
Deg |
|
CONTRAST |
Cr |
j
=15°,q
=0°
|
3 |
5 |
— |
— |
|
RESPONSE TIME |
tr(rise) |
j =15°,q =0° |
— |
150 |
200 |
Ms |
|
tf(fall) |
— |
200 |
250 |
Ms |
STN type:
|
ITEM |
SYMBOL |
CONDITION |
MIN |
TYPE |
MAX |
UNIT |
|
VIEW ANGLE |
Δj |
q
=0°(Cr³
2) |
30 |
40 |
— |
Deg |
|
CONTRAST |
Cr |
j
=15°,q
=0°
|
3 |
5 |
— |
— |
|
RESPONSE TIME |
tr(rise) |
j =15°,q =0° |
— |
250 |
350 |
Ms |
|
tf(fall) |
— |
250 |
350 |
Ms |
NOTE1: Definition of Viewing Angle θ,Φ

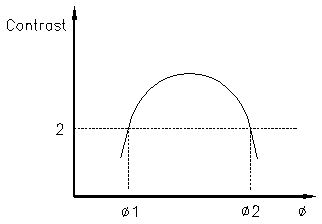

NOTE2: Definition of viewing Angle Range: ΔΦ=|Φ2-Φ1|

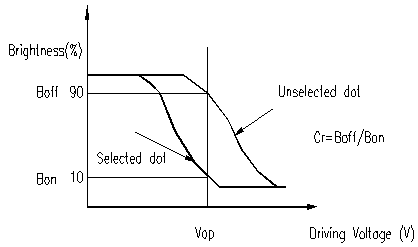

NOTE3: Definition of Contrast

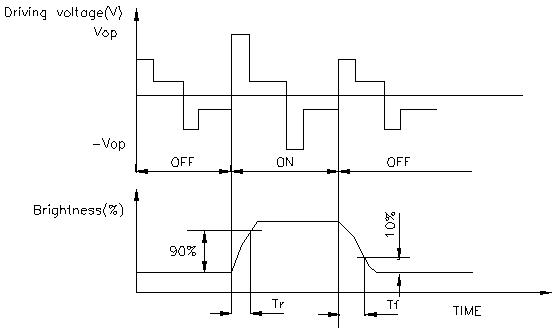

NOTE4: Definition of Response Time
